StarliteHD+

More powerful - New hardware

High resolution picture, low latency, improved Peaking


Starting from 1210*,- Euros

*Without VAT - ExWorks

Buy online
Transvideo StarliteHD+
Measurements
  • Waveform
  • Histogram
  • Vectorscope
Focus
  • Focus Puller view
  • Improved Peaking
  • Zoom 1:1 (px to px)
  • Slide in Zoom
Record features
  • REC on SDI
  • Auto REC
  • Snapshot
Intuitive interface
  • User assignable smart corners
  • H & V Flip
  • Configuration file
Data / Lenses
And more...
  • PDF reports
  • VirtualHorizon
  • ARRI mode for StarliteHD5+ ARRI, ...

Inspired by the StarliteHD core technologies

With its new hardware, the StarliteHD+ has all StarliteHD V2 functionalities and much more. It provides an increased picture resolution, low latency, and an improved Peaking enhancing its many capabilities further and making it also an excellent choice for different oriented jobs such us focus pulling. The StarliteHD+ now accepts SDI 3G Level A and Level B

The StarliteHD V2 is discontinued but upgrade from V1 to V2 remains available for StarliteHD(1) and StarliteHD5-ARRI (without possibility of upgrade to StarliteHD+ after)
(1) Depends on the model and serial number

 180*,- Euros with upgrade kit(2) or at the factory(3)

*Without VAT - ExWorks
(2) Tools included
(3) Return cost worldwide included

Order kit   Order upgrade at factory
Transvideo StarliteHD Focus Puller View

Applications

Digital Cinematography
Broadcast
High Speed Digital Camera
Handheld rigs & Steadicam™

Intuitive interface

A new concept of human interface uses the power of the touch screen panel and rids the user of incomprehensible and endless tiered menus.

Built-in tools

Built-in tools include a high-resolution waveform monitor, a precise vectorscope and an histogram of the luminance, while an embedded recorder delivers dailies in H.264 on to SD cards.
You can take some snapshots and generate pdf reports including camera and lenses metadatas (ARRI and SONY cameras carying metadatas through HD-SDI only).

Small and lightweight

With cameras reducing in size and portable systems becoming more and more compact, Transvideo has created a small 5” HD OLED monitor, about the size of a smartphone and weighting only 190 Grams (0.4lbs).

Manufacturing quality

The StarliteHD housing is extremely rugged, machined in aviation-grade aluminium
A wide range of accessories is planned, from battery support to detachable sun hood and more.

StarliteHD+

Standard version


Starting from 1210*,- Euros

*Without VAT - ExWorks

Buy online
Transvideo StarliteHD+

StarliteHD5+ ARRI

With ARRI camera interface


Starting from 1390*, - Euros

* Without VAT - ExWorks

Buy online
Transvideo StarliteHD5-ARRI

The StarliteHD+ inspires the entire range. With intuitive customizable touchscreen, the user is finally free of endless menus.

Versatile, it is a toolbox finding its place on the most exigent sets. Despite its light weight and small size, the StarliteHD+ is built to last with an aluminium machined body.

Available by direct sale or through ARRI’s sales channels, the StarliteHD5+ ARRI remotes the ALEXA Mini and the AMIRA throught a specific menu activated when the monitor is connected to the EXT connector of the camera.

StarliteHD5+ ARRI is compatible with any other cameras with standard functionalities.

StarliteHD+ features

Transvideo StarliteRF-a home view

Intuitive interface

  • Smart corners for user assigned tools
  • Zoom zone (tap to zoom and slide to move the zoomed picture)
  • Rec zone
  • Arri mode (only for StarliteHD5+ ARRI)
Transvideo StarliteHD tools

Built-in tools

  • PDF report
  • VirtualHorizon
  • AutoREC control
  • Reverse mode, Viewfinder mode
  • Anamorphic Desqueeze 1.3x, 2x, ...
  • H&V Flip, Zoom switch, ...
Transvideo StarliteHD smart corners

Assignable smart corners

  • Waveform, Histogram, Verctorscope
  • Focus Puller view
  • Peaking
  • Metadata view
  • Centered Zoom
  • Quick access to last record, ...
Transvideo StarliteHD VirtualHorizon

VirtualHorizon

  • Activate / Deactivate icon
  • CAL on tap
Transvideo StarliteHD measurements

Measurements

  • Histogram & Waveform can be pinned on the picture by a simple touch on the screen
Transvideo StarliteHD metadata

Metadata

  • Metadata is camera dependent.
Transvideo StarliteRF-a record

Record dailies

  • Record status on screen
  • Start / Stop icon
  • Quick access to playback gallery
  • Quick access to snapshots gallery
Transvideo StarliteRF-a gallery view

Records & Snapshots Gallery

  • Intuitive navigation
  • Possibility to convert file format
    H264 to MP4 by default
Transvideo StarliteRF-a play view

Play function

  • Play status displayed
  • Rewind / Forward
  • Quick access to records gallery
  • Possibility to delete record

StarliteHD+

Transvideo StarliteHD connectors

StarliteHD5+ ARRI

Transvideo StarliteHD-ARRI connectors

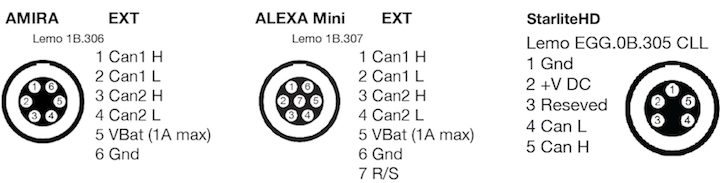

ARRI Cameras & StarliteHD Connectors Pin-Outs


All pin-outs for camera interfaces appear as seen by the user.

* Warning
Transvideo uses a specific cable for the StarliteHD5+ ARRI
User must be extremely careful with the wiring of custom cables. Using other cables may damage the product.

Model917TS0177 - StarliteHD+917TS0178 - StarliteHD5+ ARRI
Video Input1 x 3G/HD/SDI
Video Output 1 x 3G/HD/SDI
Supported Standards

3G:   1080 / 50p, 60p
HD:   1080 / 50i, 60i
         1080 / 24p, 25p, 30p
         1080 / 24psf, 25psf
         720 / 25p, 30p, 50p, 60p
SDI:  525 / 60i
         625 / 50i

Recorder.H264 - with possibility to replay
 Display type & size AMOLED - 5 inches
 PixelsPicture zone 1280 x 720
Contrast ratio
Viewing angle
Brightness		3400:1
±80° H & V
380Nits
Color temperatureD56
AvengerLeveler TM

Yes

Power5-30V DC power input through Lemo2 "0B"
1 GND, 2 VDC		 6-30V DC power input through Lemo5
Power Cons.

6W nominal

Battery Socket

Sony type L

External SD Card Slot

Yes

Dimensions
(l x h x d)
144 x 68 x 27 mm
5,66 x 2,67 x 1,06 inches
Weight<200g, 0.5lbs

StarliteHD+ 917TS0177 includes monitor only, without accessory

StarliteHD+ standard package - 917TS0177-p includes:

  • 1 x StarliteHD+ P/N 917TS0177
  • 1 x Power cable mini-Lemo2 mini to RS3 - P/N 906TS0169
  • 1 x HD BNC Cable - P/N 906TS0219 or 906TS0220
  • 1 x Class10 SD card
  • Microfiber pouch
All delivered in a hard case with custom foam
Buy online

StarliteHD5+ ARRI - 917TS0178 - includes monitor only, without accessory

StarliteHD5+ ARRI package - 917TS0178-p includes:

  • 1 x StarliteHD5+ ARRI - P/N 917TS0178
  • 1 x Cable Lemo5 to Lemo6 with wiring for the EXT connector of the AMIRA/MINI*
  • 1 x BNC cable
  • 1 x 3D swing Arm (short version : P/N918TS0261)
  • 1 x Class 10 SD card
  • Microfiber pouch
All delivered in a hard case with custom foam

* Warning
Transvideo uses a specific cable for the StarliteHD5+ ARRI
User must be extremely careful with the wiring of custom cables. Using other cables may damage the product.

Transvideo StarliteHD+

Upgrade from V1 to V2

StarliteHD V2 upgrade tool kits includes:

  • 1 x BNC key to unlock StarliteHD connectors
  • 1 x Allen key to unsrew the StarliteHD back corners
  • 1 x Micro SD card to process the firmware upgrade
  • 1 x Printed documentation
Buy tools kit online
Buy upgrade at factory
Transvideo StarlteHD V2 monitor recorder upgrade toolkit

Accessories

Viewfinder adapter for StarliteHD range
P/N 918TS0266
Replacement front part for Starlite lineup
P/N 918TS0267
Sun Hood for Starlite lineup
P/N 918TS0265
Buy online
Transportation cover plate for Starlite lineup
P/N 918TS0268
Buy online
Mini Lemo5 to RS3 power cable - for StarliteHD5-ARRI only
P/N 906TS0188
Mini Lemo2 to D-Tap power cable
P/N 906TS0170
Buy online
Mini Lemo5 to 6pin straight Fisher connector for StarliteHD-ARRI only
P/N 906TS0130
Buy online
Mini 3D Swing Arm for ARRI
P/N 918TS0261
Buy online
Battery back Sony L/M series for StarliteHD5
P/N 918TS0251
Buy online
Battery back Sony L/M series for StarliteHD5-ARRI only
P/N 918TS0274
Buy online
Buy accessories online

StarliteHD family leafleft

PDF version (3MB) > Download
